macOS

macOS-specific properties go in macConfig. Code signing and notarization are explained in the code signing guide.

Maven

<macConfig>
    <appId>com.example.myapp</appId>
    <icnsFile>assets/mac/MyApp.icns</icnsFile>
    <macStartup>UNIVERSAL</macStartup>
    <generateDmg>true</generateDmg>
    <generatePkg>true</generatePkg>
    <infoPlist>
        <additionalEntries><![CDATA[
            <key>LSUIElement</key>
            <true/>
        ]]></additionalEntries>
    </infoPlist>
    <developerId>Developer ID Application: Jane Doe (TEAMID1234)</developerId>
    <volumeName>MyApp</volumeName>
</macConfig>

Gradle

import io.github.javapackager.model.MacStartup

javapackager {
    macConfig {
        appId = 'com.example.myapp'
        icnsFile = file('assets/mac/MyApp.icns')
        macStartup = MacStartup.UNIVERSAL
        generateDmg = true
        generatePkg = true
        infoPlist.additionalEntries = '''
            <key>LSUIElement</key>
            <true/>
        '''
        developerId = 'Developer ID Application: Jane Doe (TEAMID1234)'
        volumeName = 'MyApp'
    }
}

Gradle

infoPlist has no closure: set its fields with infoPlist.additionalEntries = ... and infoPlist.bundlePackageType = .... A macConfig { } block in your own PackageTask replaces the extension's whole macConfig; it isn't merged property by property.

General properties

Property	Default	Description
appId	mainClass	Bundle identifier (CFBundleIdentifier). Also the prefix of file association UTIs (${appId}.${extension}) and of the bundled runtime id.
icnsFile	${assetsDir}/mac/${name}.icns, or the default icon	App icon in ICNS format. Tools like MacIcns convert a PNG to ICNS.
macStartup	UNIVERSAL	App launcher: UNIVERSAL, X86_64, ARM64 or SCRIPT. See Launchers.
customLauncher		Your own launcher (binary or script). It's copied to Contents/MacOS under its own name and replaces macStartup. Ignored if the file can't be read.
relocateJar	true	true: the JAR and libs/ go in Contents/Resources/Java; false: in Contents/Resources.
generateDmg	true	Generates ${name}_${version}.dmg (with generateInstaller).
generatePkg	true	Generates ${name}_${version}.pkg (with generateInstaller).

On macOS, useResourcesAsWorkingDir is always true: the app's working directory is Contents/Resources.

Info.plist properties

Property	Default	Description
infoPlist.bundlePackageType	BNDL	CFBundlePackageType: BNDL, APPL or FMWK.
infoPlist.additionalEntries		Raw plist XML (<key> and value pairs) appended to the generated Info.plist. It must be well-formed, and must not repeat keys JavaPackager already writes.
customInfoPlist		Your own Info.plist, copied as is instead of generating it (infoPlist is then ignored). It must keep the CFBundleExecutable and the JavaX dictionary the launcher reads.
customRuntimeInfoPlist		Your own Info.plist for the bundled JRE (Contents/PlugIns/jre.jre/Contents/Info.plist). Only with bundleJre.

Signing and notarization properties

Property	Default	Description
codesignApp	true	Signs the .app with codesign. Only when building on macOS.
developerId	-	Signing identity. The default - means ad-hoc signing: no certificate needed, but the app can't be notarized.
entitlements	generated	Entitlements file. If not set, a default one suitable for a JVM is generated.
hardenedCodesign	true	Enables the hardened runtime (codesign -o runtime), if the build machine runs macOS 10.13.6 or newer.
provisionProfile		Provisioning profile, copied to Contents/embedded.provisionprofile before signing.
notarizeApp	false	Submits the signed app to Apple for notarization and staples the ticket. Needs codesignApp and a real developerId.
keyChainProfile		Keychain profile created with xcrun notarytool store-credentials. Required with notarizeApp.

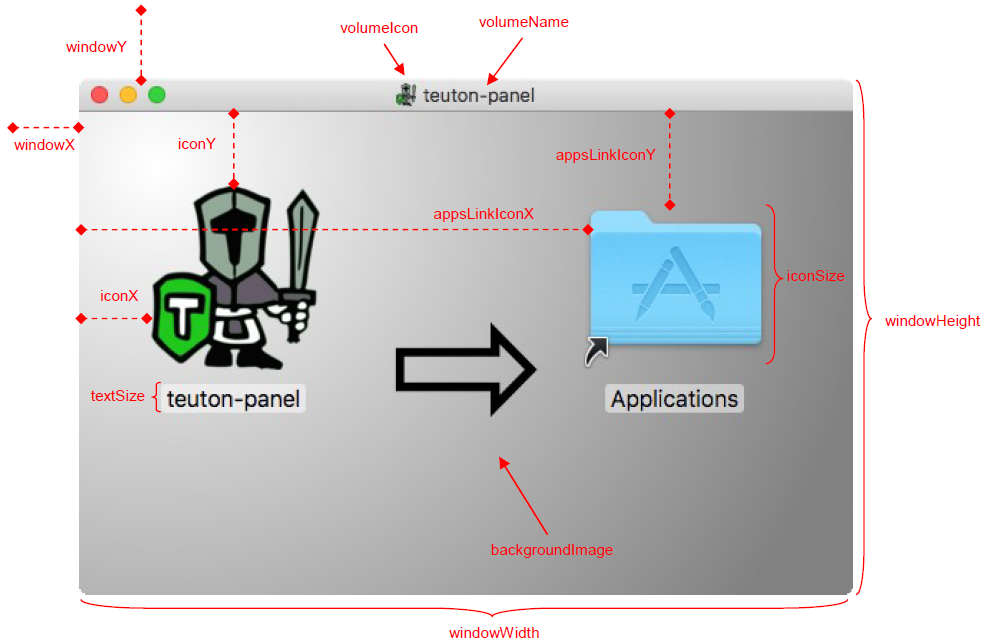

DMG properties

Property	Default	Description
backgroundImage	built-in image	DMG window background.
windowX	10	X coordinate of the DMG window on screen.
windowY	60	Y coordinate of the DMG window on screen.
windowWidth	540	Width of the DMG window.
windowHeight	360	Height of the DMG window.
iconSize	128	Icon size.
textSize	16	Label text size.
iconX	52	X coordinate of the app icon, relative to the window.
iconY	116	Y coordinate of the app icon, relative to the window.
appsLinkIconX	360	X coordinate of the Applications link, relative to the window.
appsLinkIconY	116	Y coordinate of the Applications link, relative to the window.
volumeIcon	the app icon	Icon of the mounted DMG volume (ICNS).
volumeName	name	Name of the mounted volume. Whitespace is removed.

Launchers

The launcher is the executable macOS runs when the app is opened. It reads the JavaX dictionary of Info.plist (main class, class path, VM options, arguments) and starts the JVM, the bundled one if there is any.

macStartup	Launcher
UNIVERSAL	Native launcher, universal binary: runs natively on Apple Silicon and Intel. Default since 2.0.0.
X86_64	Native launcher, Intel only.
ARM64	Native launcher, Apple Silicon only.
SCRIPT	Bash script (universalJavaApplicationStub.sh). Default up to 1.7.6.

The native launcher is maintained in javapackager/nativeJavaApplicationStub. Whatever the type, it's written as Contents/MacOS/universalJavaApplicationStub.

To keep the launcher used up to 1.7.6, set <macStartup>SCRIPT</macStartup> (Gradle: macStartup = MacStartup.SCRIPT).

App bundle layout

${name}.app/
└── Contents/
    ├── Info.plist
    ├── MacOS/
    │   ├── universalJavaApplicationStub   # launcher
    │   └── startup                        # only with administratorRequired
    ├── Resources/
    │   ├── ${name}.icns
    │   ├── scripts/                       # only with a bootstrap script
    │   └── Java/                          # with relocateJar (default)
    │       ├── ${name}-${version}-runnable.jar
    │       └── libs/
    └── PlugIns/                           # only with bundleJre
        └── jre.jre/Contents/Home/         # the JRE

Info.plist holds the bundle keys (CFBundleIdentifier from appId, CFBundleName and CFBundleDisplayName from displayName, CFBundleShortVersionString and CFBundleVersion from version, NSHumanReadableCopyright from organizationName), the file associations, LSEnvironment (JAVA_HOME of the bundled JRE, PATH from envPath), and the JavaX dictionary:

JavaX key	Value
MainClass	mainClass
ClassPath	The app JAR, followed by the classpath entries
VMOptions	vmArgs
Arguments	appArgs
JVMVersion	${jreMinVersion}+, when no JRE is bundled
WorkingDirectory	Contents/Resources
JVMOptionsFile	Contents/Resources/${name}.l4j.ini (see runtime JVM options)
BootstrapScript	The bootstrap script, if any

Running as administrator

With administratorRequired, CFBundleExecutable is a startup script that runs the launcher through osascript ... with administrator privileges. macOS asks for an administrator's user name and password every time the app starts, and the app runs as root.

DMG

The DMG is built with hdiutil and laid out in Finder with AppleScript: the app icon, a link to /Applications, the background image and the positions above. It needs the Xcode command line tools (SetFile) and permission for the build to control Finder.

The image uses APFS when the build runs on an Apple Silicon JVM, and HFS+ otherwise.

PKG

The PKG is built with pkgbuild and installs the app in /Applications. Its install location, identifier and scripts can't be configured.

Building on other platforms

With platform=mac you can build the .app, zipball and tarball on GNU/Linux or Windows; to bundle a JRE, set jdkPath to a macOS JDK (see bundling a JRE). Code signing, notarization, the DMG and the PKG need macOS and are skipped elsewhere.

caution

An app built off macOS isn't signed, and Apple Silicon Macs refuse to run unsigned apps. Sign it on a Mac before distributing it (at least ad-hoc: codesign --force --deep -s - MyApp.app).
